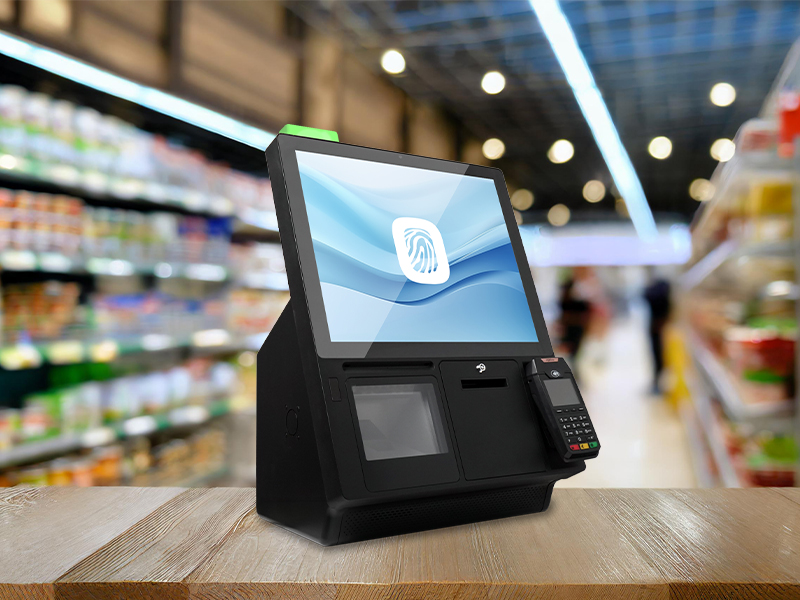

Pagoda Kiosk

Self-Checkout at Its Finest

Unleash the full potential of self-service experience with the Pagoda Kiosk, a powerhouse of performance and versatility. Featuring a sleek 19″ true-flat PCAP multi-touch display and powered by your choice of Intel® Alder Lake-N or Meteor Lake Core Ultra 5 processors, the Pagoda delivers consistent speed and responsiveness. Flexible OS support, including Windows, Linux, and Android 13, ensures seamless integration into any environment. With extensive support for options like MSRs, scanners, printers, cameras, and payment terminals, and mountable on a wall, counter, or stand, the Pagoda is designed to bring excellent customer engagement to your business.

Reliable Performance

  • Intel® Alder Lake or Meteor Lake CPU
  • Up to 48GB Memory / Up to 2TB SSD Storage
  • Intuitive 19” Display
  • Supports Windows, Linux, & Android OS

Custom Configuration

  • MSR, 2D Barcode Scanner, and More Options
  • Mountable on Wall, Counter, or Stand
  • Wireless LAN Option

CPU/Processor

Intel® Alder Lake-N: N97, i3-N305
Intel® Meteor Lake Core Ultra 5 125U

Memory

Alder Lake:
8GB DDR4 (up to 32GB)

Meteor Lake:
8GB DDR5 (up to 48GB)

Storage

128GB NVMe M.2 (up to 2TB)

Supported OS

Windows 10 IoT LTSC, Windows 11 IoT LTSC, Windows 11 Pro, Linux, Android 13 w.o GMS

I/O Ports

Alder Lake:

2 x USB 3.0, 4 x USB 2.0
1 x USB-C
2 x custom miniDP
3 x RJ48 Serial Port
1 x RJ45 LAN
1 x RJ11 Cash Drawer
1 x 4-PIN w. Lock
(option) 1 x 12V, 1 x 24V Powered USB

Meteor Lake:

4 x USB 3.0, 2 x USB 2.0
1 x USB-C
2 x custom miniDP
3 x RJ48 Serial Port
1 x RJ45 LAN
1 x RJ11 Cash Drawer
1 x 4-PIN w. Lock
(option) 1 x 12V, 1 x 24V Powered USB

Wireless Connectivity

(option) Wi-Fi & Bluetooth

Audio

1 x 3W Internal Speaker

Power

Alder Lake:
65W / 19V

Meteor Lake:
120W / 19V

Display

19” True-Flat PCAP Multi-Touch (1280 x 1024)

Peripheral (options)

RFID Reader (USB)
3-Track MSR (USB)
Top Pole Module
5MP Main Display Camera, 2MP Wide Range Top Pole Camera
Indicator Light, pole-mounted or on top of system
11.6” 2nd Display
Mountable on wall, counter, or stand
Honeywell 7990G Retail Scanner
Printer: Epson® TM-M30II, TM-T88VI, TM-T88VII
Supports Verifone P400, Ingenico LANE 3000/3600 (payment bracket only)

Environment

Operating Temp: 32°F to 95°F (0°C to 35°C)
Storage Temp: -4°F to 140°F (-20°C to 60°C)
Humidity: 20%-85% non-condensing

Dimensions & Weight

17.1” W x 22.9” H x 12.1” D
28.66 lbs

Default Configurations

PGD-C8BLNA-M0000000 Intel® Processor N97, 8GB RAM, 128GB SSD, Windows 11 IOT LTSC, MSR, Printer
PGD-C8BLNA-M3000000 Intel® Processor N97, 8GB RAM, 128GB SSD, Windows 11 IOT LTSC, MSR, Printer, Wireless, Scanner
PGD-38BLNA-M30L0000 Intel® Core™ i3-N305, 8GB RAM, 128GB SSD, Windows 11 IOT LTSC, MSR, Printer, Wireless, Scanner, Top Light
