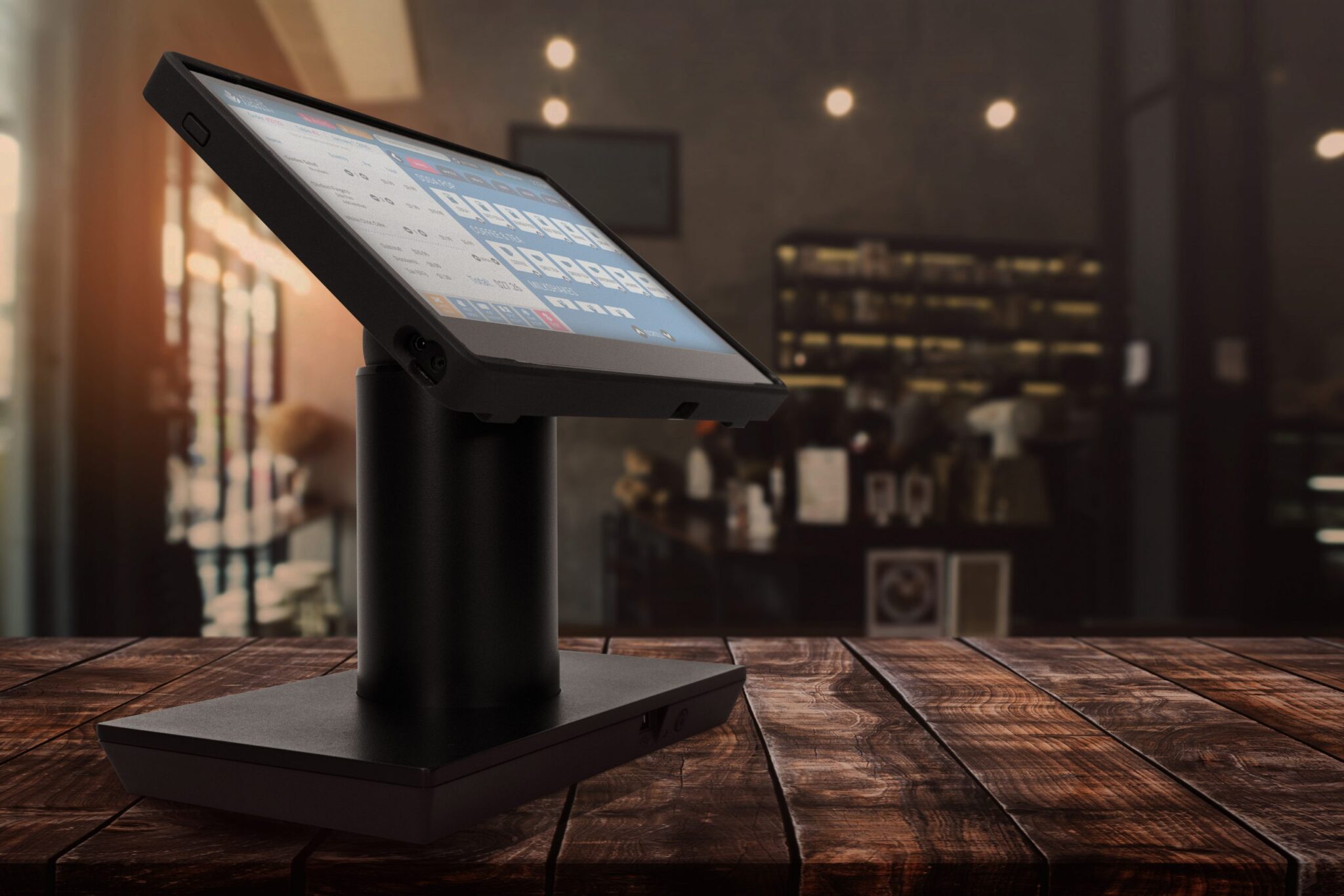

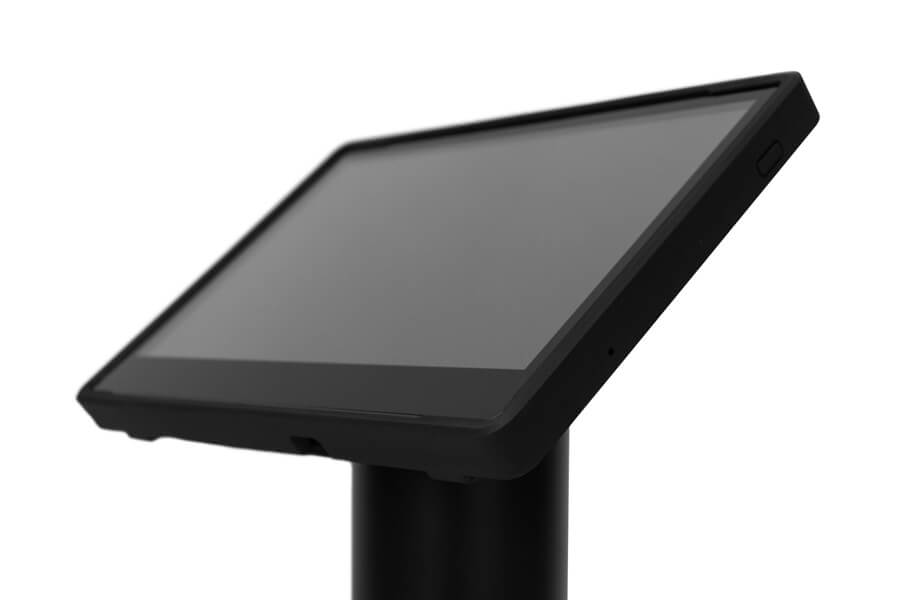

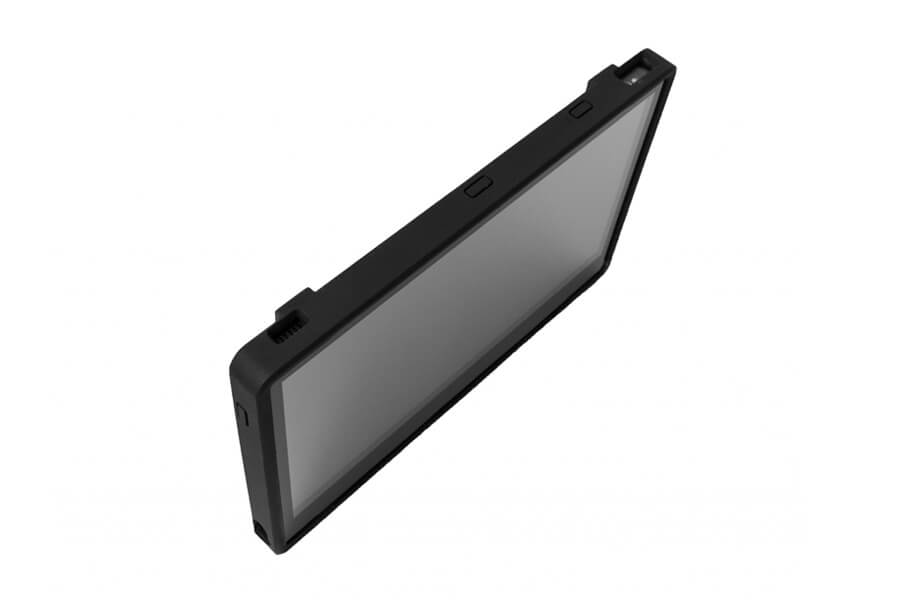

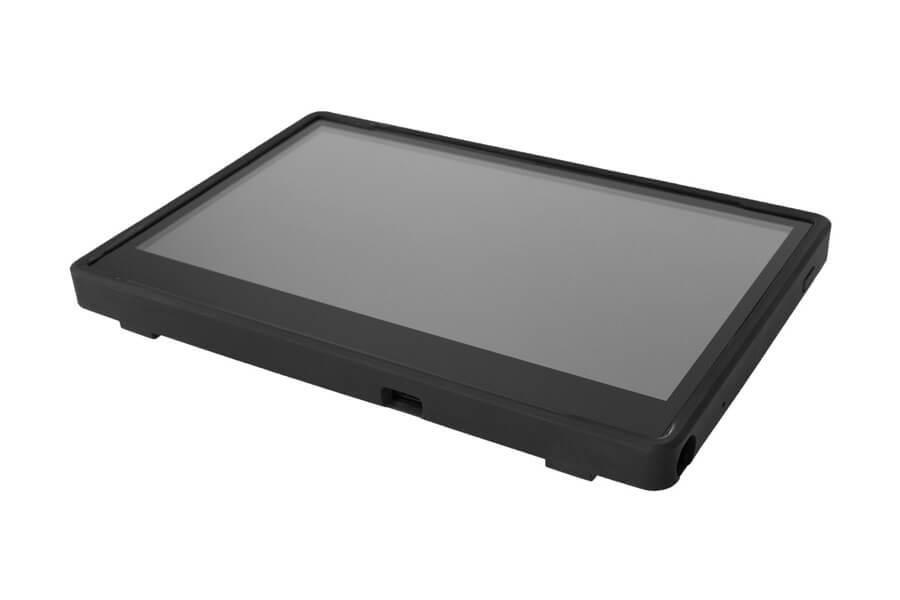

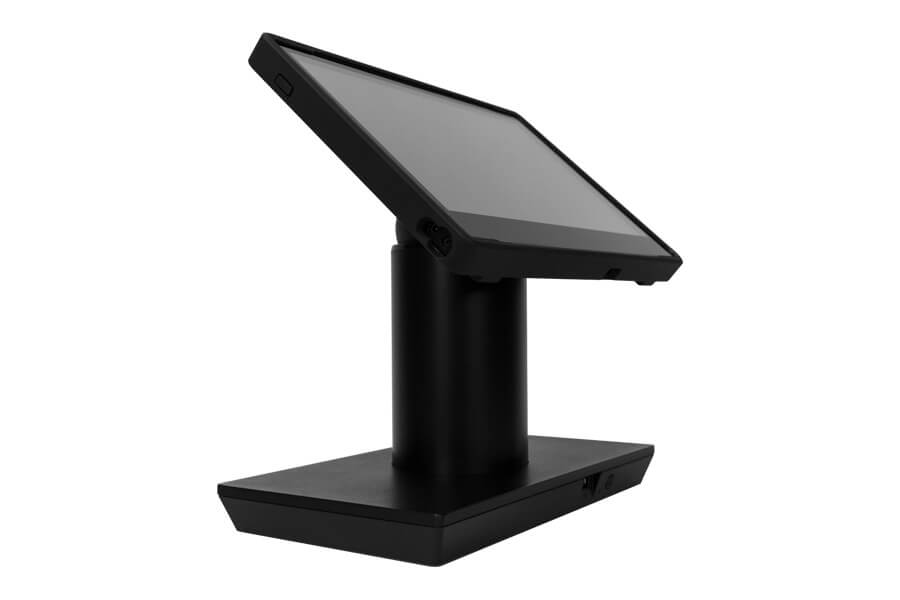

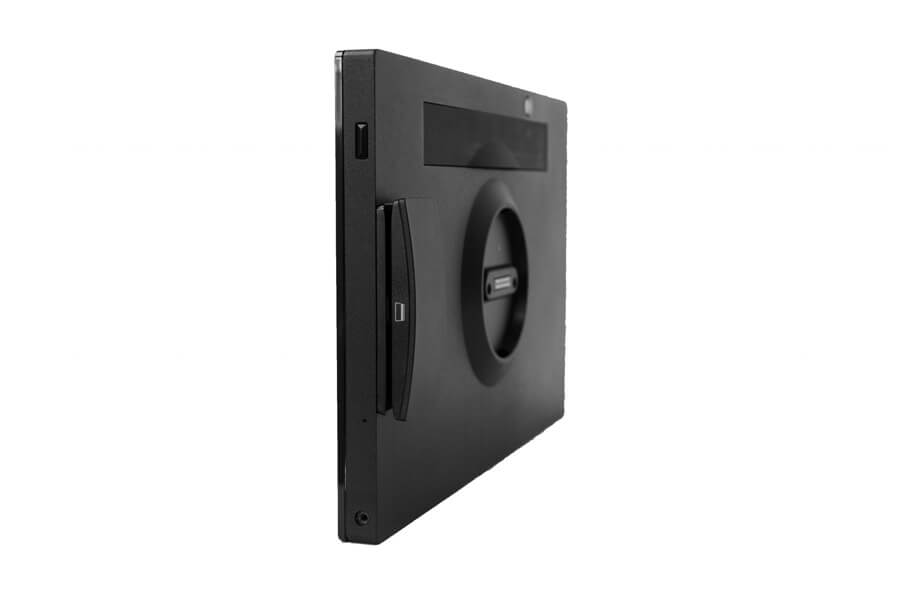

Discover the ultimate in versatility with the Fusion Hybrid Tablet, an All-in-One (AIO) solution that seamlessly transitions between stationary and mobile modes. Its innovative base, featuring a secure electronic lock, allows for effortless conversion with a single button press. Built to withstand the toughest environments, the ruggedized tablet comes with a removable bumper for enhanced durability. Plus, with customizable peripherals like MSR, Honeywell Barcode Reader, and RFID, it can be tailored to meet your specific business needs. Perfect for a wide range of commercial settings, the Fusion Hybrid Tablet is the smart choice for those who demand flexibility and reliability.
Mobility Made Easy
- Intel® Elkhart Lake Celeron® J6412 CPU
- 8GB RAM Standard / 128GB eMMC Storage

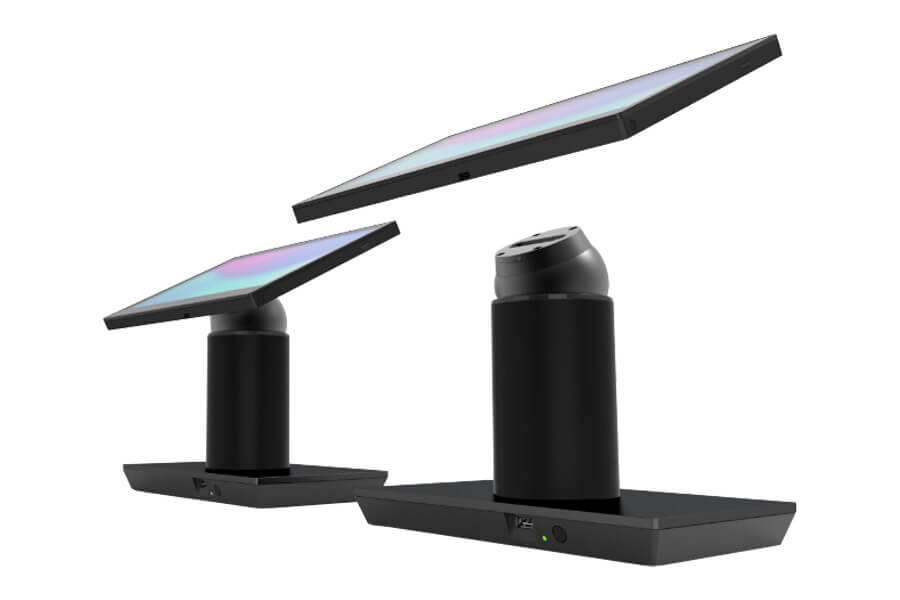

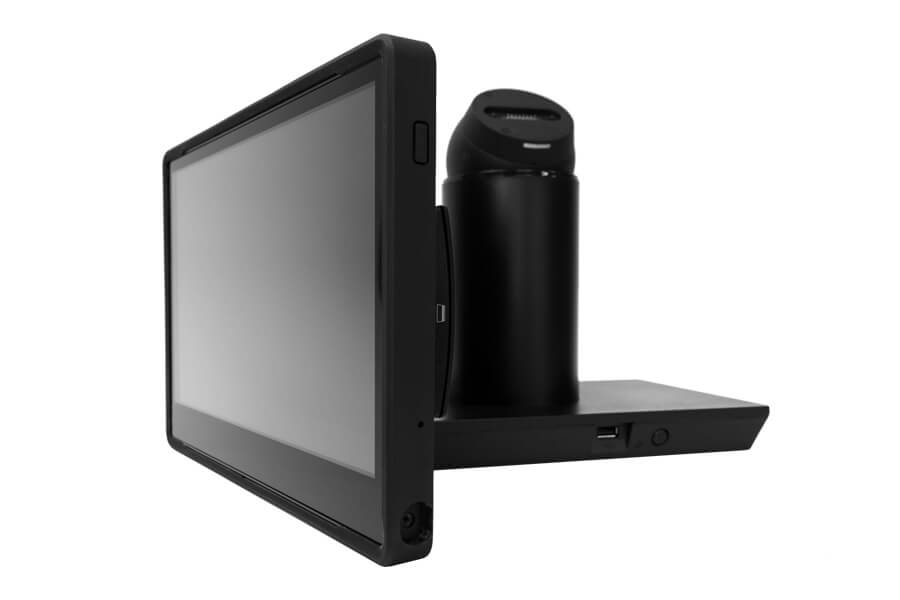

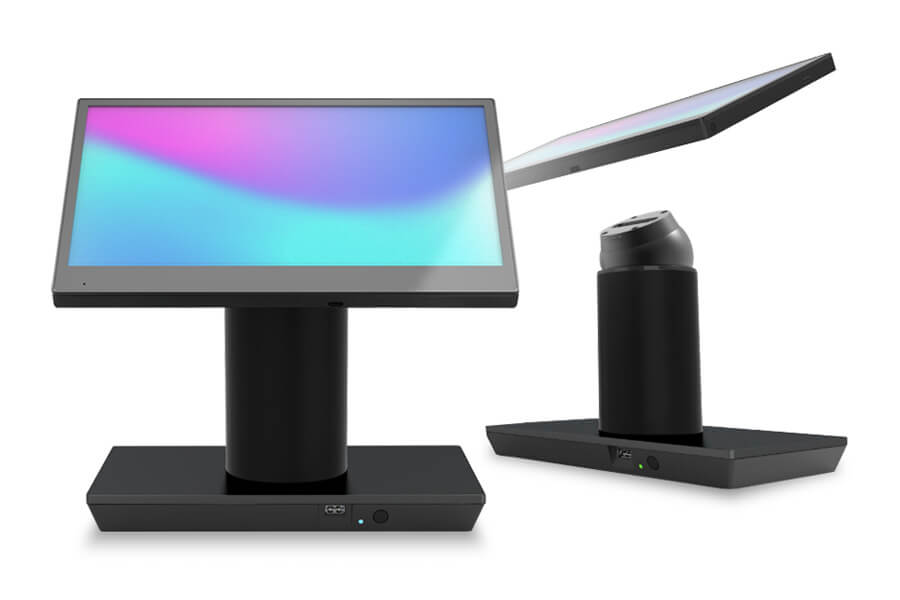

- Adapts in a Snap – Converts easily from All-in-One to Tablet
- 11.6” Widescreen LCD Display
Custom Configuration
- Integrated 2D Barcode Reader Option
- Rear Camera Option
- MSR, Fingerprint Reader, & RFID Options
CPU/Processor
Intel® Elkhart Lake Celeron® J6412 up to 2.6 Ghz
Memory
8GB RAM
Storage
128 GB eMMC SSD
Graphics
Intel® HD Graphics Card
Supported OS
Windows 10 IOT, Windows 11, Android 13, Linux 1
I/O Ports
1 x USB-C 3.0 (only data transfer)
1 x 12V, 1 x 24V Powered USB 2
2 x DB9 (power option 0, 5V, 12V)
1 x RJ45 LAN Port (10x100Mbs)
1 x RJ11 Cash Drawer Port
1 x DC-Jack (4-PIN w. Locking)
Wireless Connectivity
Intel Wireless 802.11 (a/b/g/ac/ax) 5.2
Audio
1 x 1W Integrated Speaker with Microphone
Power
3.8 V 7000mAh Battery
120W / 19V Power Adapter 3
Touch Screen
True-Flat PCAP Multi-Touch
Control
G-Sensor
Peripheral (Options)
ID Tech 3-Track MSR
HIID Fingerprint Reader (TCET Module)
HID Global RFID Reader
2MP Rear Camera
Integrated 2D Barcode Reader, Honeywell 3601
Certificate
FCC Class B, CE Mark Class B, LVD, RF
Environment
0ºC ~ 104ºF (Discharged) Operating & Storage Temperature
32ºF ~ 95ºF (Charging)
20% ~ 80% RH non-condensing Operating & Storage Humidity
Dimensions & Weight
10.85” x 6.35” x 7.03” | Tablet: 1.85lbs | Stand: 3.95lbs
1 Inquire about Linux
2 Must upgrade to 180W Power Supply to utilize Powered USB
3 Tablet Charging through Stand
Default Configurations
| FH1000MBXXNNN | Intel® Celeron® J6412, 8G Ram, 128GB eMMC, Win 10 IOT LTSC, Base |
| FH1000LBXXNNN | Intel® Celeron® J6412, 8G Ram, 128GB eMMC, Win 11 IOT LTSC, Base |
| FH10001BXXNNN | Intel® Celeron® J6412, 8G Ram, 128GB eMMC, Win 11 PRO, Base |
- Product Highlights
-
Mobility Made Easy
- Intel® Elkhart Lake Celeron® J6412 CPU
- 8GB RAM Standard / 128GB eMMC Storage
- Adapts in a Snap – Converts easily from All-in-One to Tablet
- 11.6” Widescreen LCD Display
Custom Configuration
- Integrated 2D Barcode Reader Option
- Rear Camera Option
- MSR, Fingerprint Reader, & RFID Options
- Specifications
-
CPU/Processor
Intel® Elkhart Lake Celeron® J6412 up to 2.6 Ghz
Memory
8GB RAM
Storage
128 GB eMMC SSD
Graphics
Intel® HD Graphics Card
Supported OS
Windows 10 IOT, Windows 11, Android 13, Linux 1
I/O Ports
1 x USB-C 3.0 (only data transfer)
1 x 12V, 1 x 24V Powered USB 2
2 x DB9 (power option 0, 5V, 12V)
1 x RJ45 LAN Port (10x100Mbs)
1 x RJ11 Cash Drawer Port
1 x DC-Jack (4-PIN w. Locking)Wireless Connectivity
Intel Wireless 802.11 (a/b/g/ac/ax) 5.2
Audio
1 x 1W Integrated Speaker with Microphone
Power
3.8 V 7000mAh Battery
120W / 19V Power Adapter 3Touch Screen
True-Flat PCAP Multi-Touch
Control
G-Sensor
Peripheral (Options)
ID Tech 3-Track MSR
HIID Fingerprint Reader (TCET Module)
HID Global RFID Reader
2MP Rear Camera
Integrated 2D Barcode Reader, Honeywell 3601Certificate
FCC Class B, CE Mark Class B, LVD, RF
Environment
0ºC ~ 104ºF (Discharged) Operating & Storage Temperature
32ºF ~ 95ºF (Charging)
20% ~ 80% RH non-condensing Operating & Storage HumidityDimensions & Weight
10.85” x 6.35” x 7.03” | Tablet: 1.85lbs | Stand: 3.95lbs
1 Inquire about Linux
2 Must upgrade to 180W Power Supply to utilize Powered USB
3 Tablet Charging through Stand - Configurations
-
Default Configurations
FH1000MBXXNNN Intel® Celeron® J6412, 8G Ram, 128GB eMMC, Win 10 IOT LTSC, Base FH1000LBXXNNN Intel® Celeron® J6412, 8G Ram, 128GB eMMC, Win 11 IOT LTSC, Base FH10001BXXNNN Intel® Celeron® J6412, 8G Ram, 128GB eMMC, Win 11 PRO, Base - Resources
-
