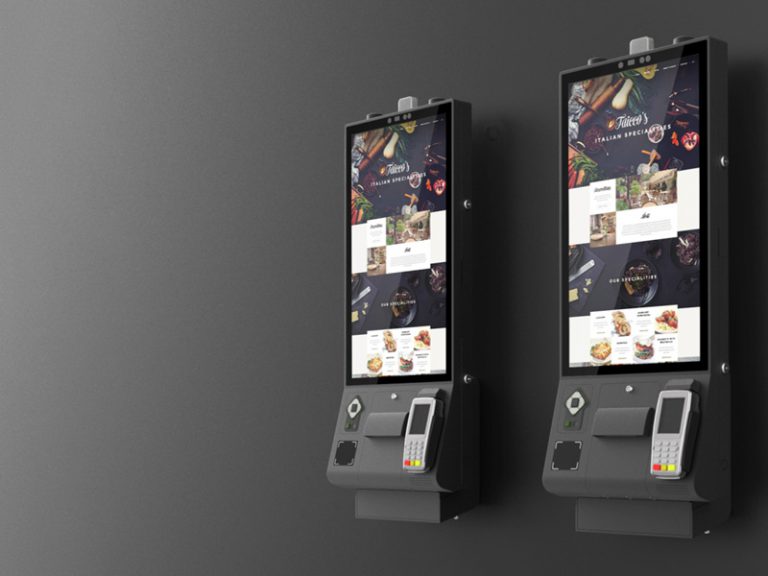

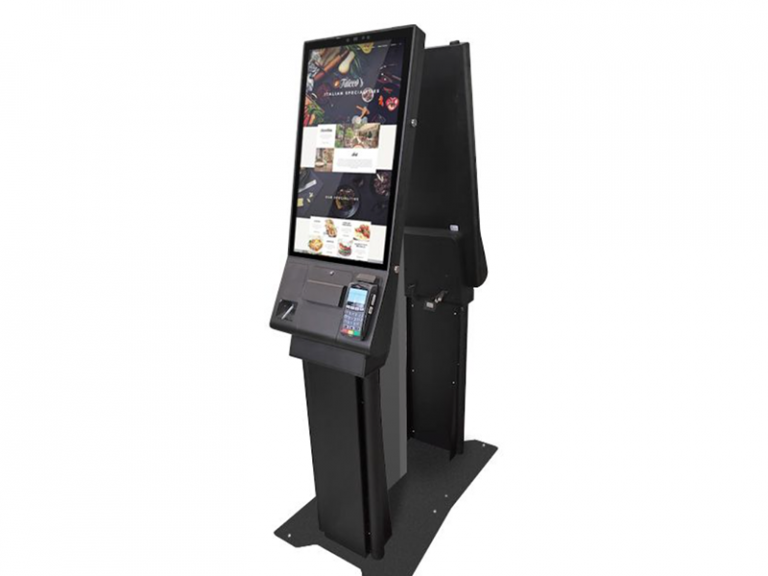

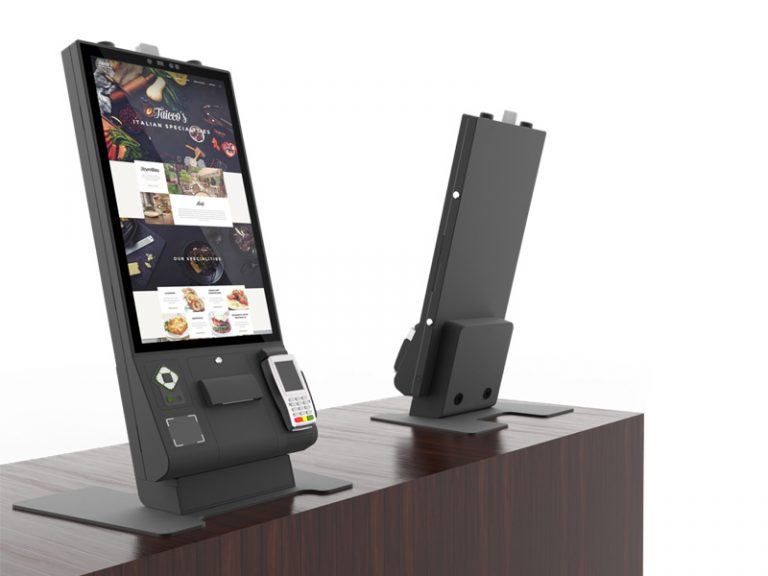

The Pavilion Kiosk allows you to customize your configuration to fit your business needs and space requirements. With three mounting options, wall, floor, and counter you can’t go wrong with this solution. Additionally, this customized kiosk helps to enhance customer experience, integrate various payment methods, is easily serviceable and upgradable, and has a minimum wobble guarantee. The kiosk comes in 2 color options: black or white, and has a 27” touch screen panel.
Features
OS Support
The Pavilion Kiosk comes in one of two primary OS options: Windows 10 IoT Enterprise & Professional (64 bit) or Linux. Both offer an expansion of 1x M.2 (E-key) WiFi/BT module (option).
Processing
The processing power capability in this customize kiosk is outstanding with a 65W/19V, the following options for base processing: Intel Whiskey Lake, Intel Whiskey Lake U i3 8145UE 2.2GHz, 1x DDR4 2133MHz SO-DIMM up to 32GB, and 2x M.2 (M-key) NVMe or M.2 SATA SSD module. Communications within this solution are wireless LAN – 802.11 b/g/n/ac & BT4.0 WLAN Card (Option).
Specs
The touch panel for the Pavilion is unique in its size and features. Coming in at 27” the panel includes: 300 nits, 1920 x 1080 (Full HD), True-Flat PCAP Multi-Touch, and 9:16. This customized kiosk comes with over a dozen external I/O ports: 2x USB3.0 Type C, 2x USB3.0, 2x USB2.0, 2x DB9 (Powered RS232) (default 0V; COM1 5V,COM2 12V), 1x RJ45, 1x RJ11, 2 (Proprietary), and 1 4 PIN DIN (with latch).
Peripherals

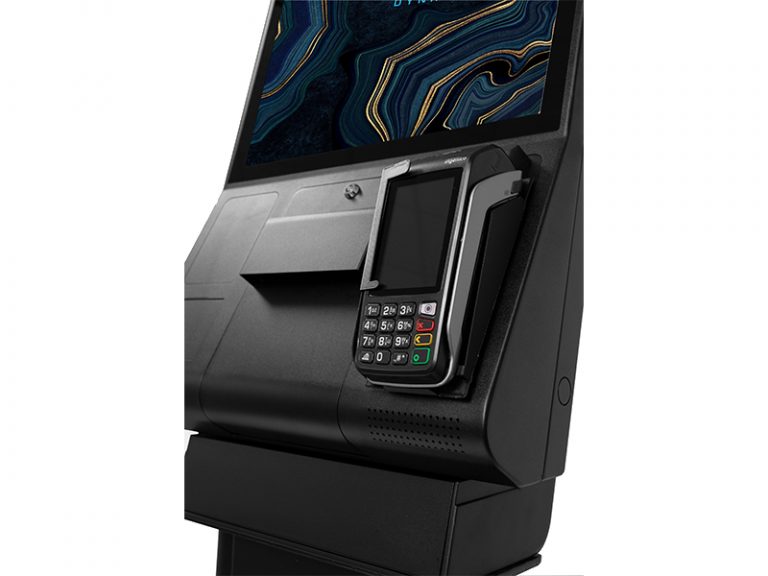

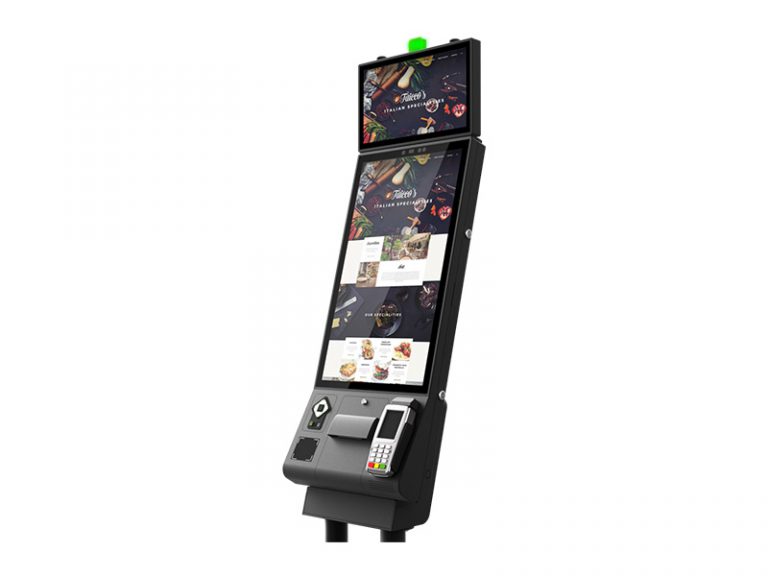

Like every good kiosk, the option for add-ons is a requirement. The Pavilion offers a second 15.6” display, six payment terminal options (Verifone: VX805, VX820, P400 or Ingenico: ipp320, ipp350, LANE3000), a Honeywell CF3680 scanner, a RealSense D415 camera, and two printer options (Epson TM-M30 or Epson TM-88VI).
